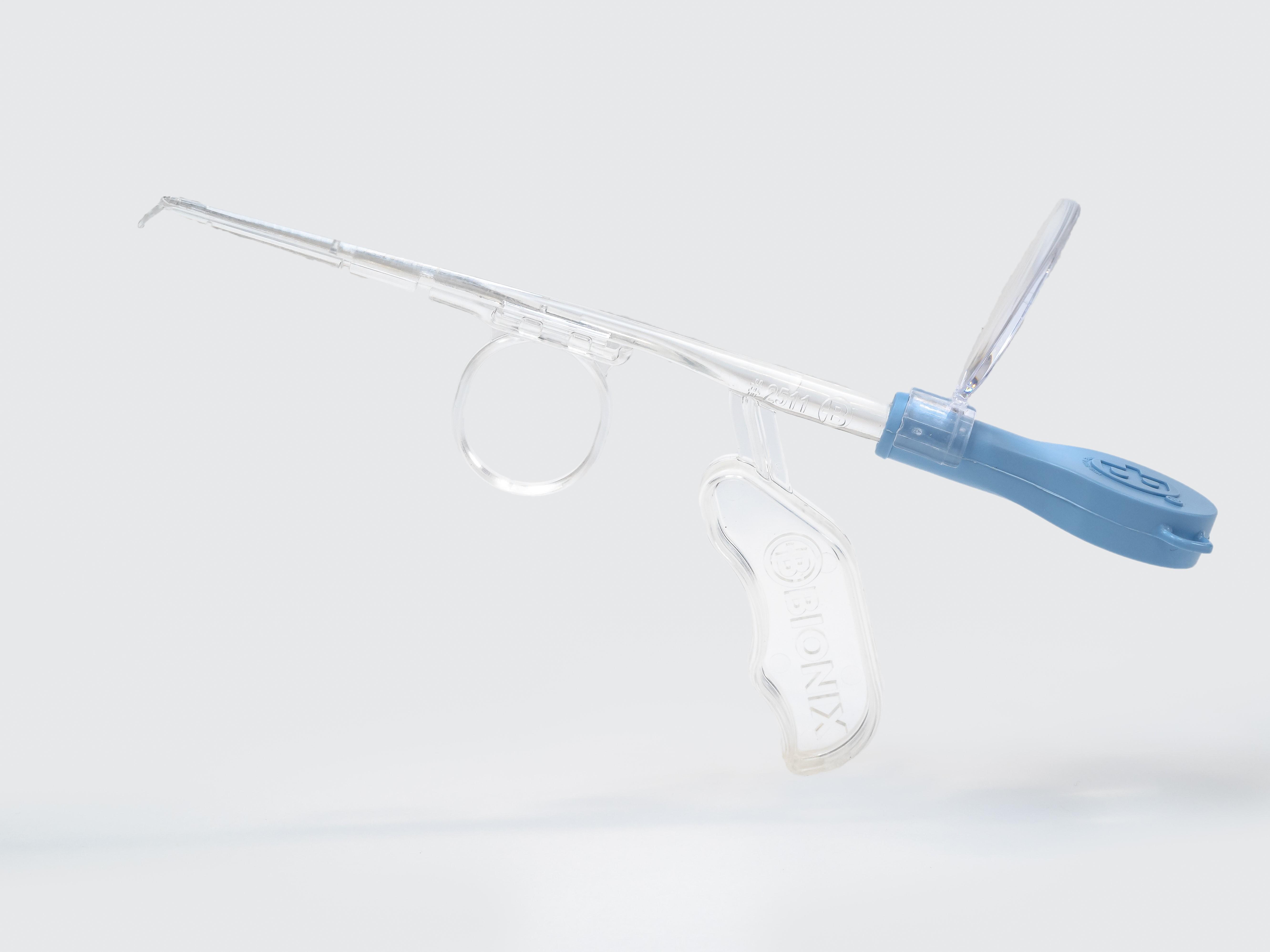

Bionix Lighted Articulating VersaScoop Ear Curettes

Lighted Articulating VersaScoop™ Ear Curettes, non-sterile, single use [box of 25 with one light source & one magnification lens]

New Design! .......... brighter light transmission & easier curette tip articulation mechanism

Light, Magnification, Action!   It's Bionix ......

The Bionix Lighted Articulating Safe Ear Curette combines the two greatest innovations in ear curettage, visualization with light and magnification, and articulation for the ability to work behind an occlusion in the ear canal.

The easy to maneuver tip articulates up to 90 degrees to assist in the removal of cerumen from the ear canal and foreign bodies from the ear and nose.

The Lighted Articulating Safe Ear Curette is the only lighted curette that articulates to assist in the removal of cerumen from the ear canal. The Lighted Articulating Safe Ear Curette works because of the unique hinged design.

Once positioned beyond an obstructive cerumen plug or foreign body, usually through a space between the ear canal wall and occlusion, the tip can be articulated by simply sliding the thumb toward the light source. The cerumen or foreign body can then be pulled straight from the ear canal without using a blind sweeping motion.


Features and Benefits

• Visualization – A brilliant white light is projected to the tip of the articulating curette illuminating the ear canal. The magnification lens enhances the view of the ear canal to visualize cerumen.
• Manipulation – Allows the physician to work behind cerumen plug or foreign body eliminating the need for the top down sweeping motion that can abrade the ear canal.
• Convenience – Eliminates the need to use a separate light source or magnification device in an attempt to enhance visualization.
• Safety – Illumination and magnification improves procedural accuracy, avoiding the risk of injury from blind curettage with stainless steel curettes.
• Made in the U.S.A.


  Instructions for Cerumen Removal
  Using the Lighted Articulating Safe Ear Curette

  1. Position the patient comfortably on the examination table. Smaller children may be restrained on their parent's lap or shoulder during the procedure.
  2. Using an otoscope, examine the ear canal noting the presence and location of any cerumen.
  3. Straighten the ear canal by gently pulling the ear up and away from the patient. Position the tip of the Lighted Articulating Safe Ear Curette adjacent to the cerumen, or behind it if there is room between the cerumen and the ear canal wall.

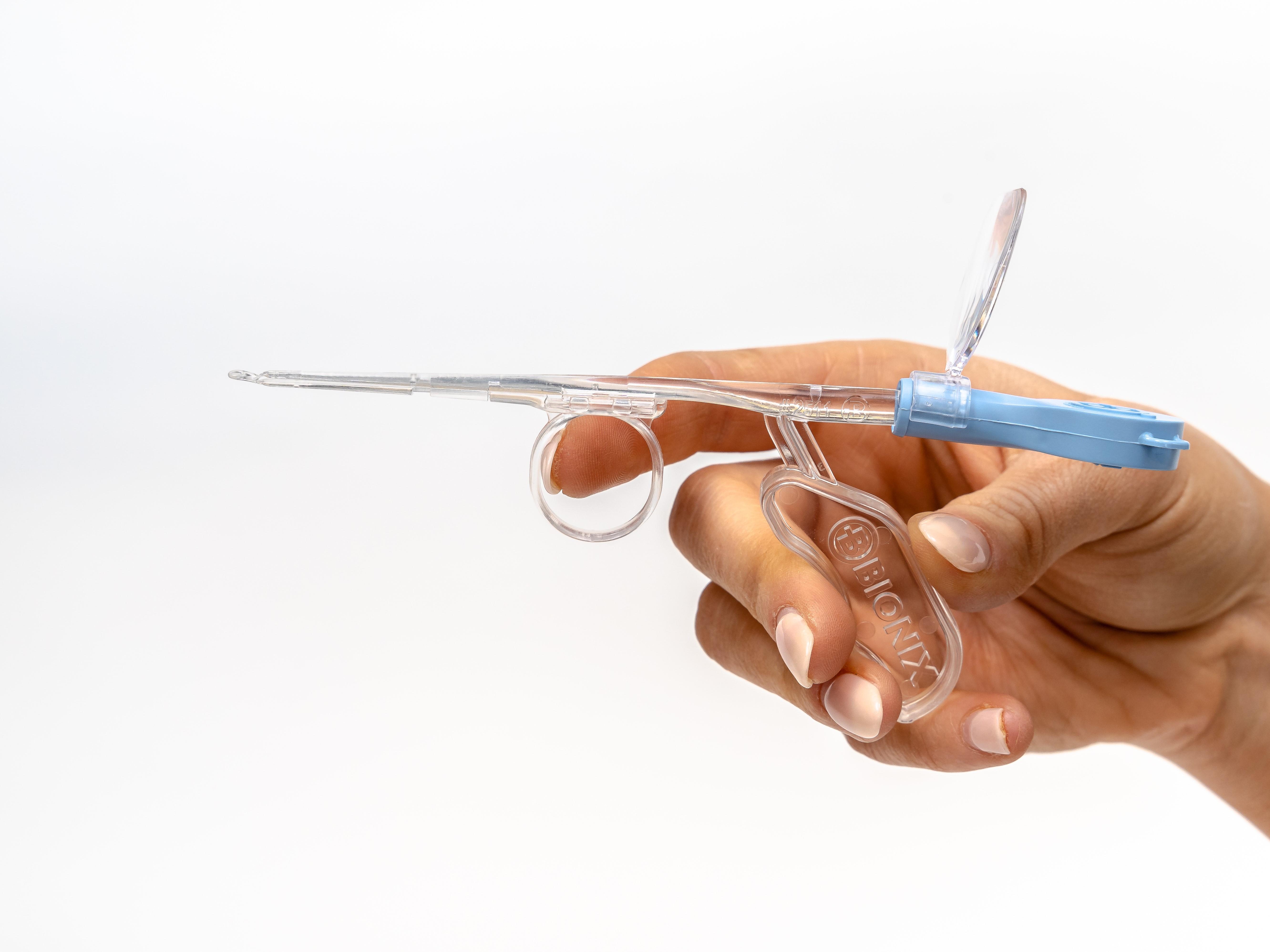

  4. Using the thumb and index finger, slide the top and bottom halves of the Lighted Articulating Safe Ear Curette against each other. This will cause the tip of the curette to bend.
  5. Hold the tip in the flexed position and gently draw the cerumen from the ear canal.
  6. Use an otoscope to re-examine the ear canal, noting the presence and location of any remaining cerumen.
  7. Repeat the above procedure as needed to remove any remaining cerumen, or until the tympanic membrane can be adequately visualized.
  8. Remove the otoscope and discard the curette tip.



  CAUTION: Discontinue curettage immediately if bleeding, irritation, or other trauma to the ear canal or tympanic membrane occurs.


• Special Note:
  The Lighted Articulating Safe Ear Curette is intended for single-patient use. Discontinue use of the curette if the hinge no longer functions. Re-use of the curette can cause the hinge to stop functioning. Use of alcohol wipes or cold sterilization can also negatively affect the funtioning of the curette. The light source and magnification lens are designed for multi-procedure use.


  Frequently Asked Questions


  1. What is the tip size on each curette?
     #2511 Lighted Articulating VersaScoop^TM is a 3mm wide tip.
  2. How do they come packaged?
     Twenty-five curettes per box.
  3. Are curettes individually wrapped?
     No, all 25 curettes come in a single pouch for easy access.
  4. How long will the light source last?
     It is designed to provide light for 50 curettage procedures.
  5. Are they sterile?
     Not necessary, not used in a sterile environment.
  6. Is there a CPT code for this procedure?
     We recommend that you submit this under CPT code 69210 for potential reimbursement. Alternatively, cerumen removal may increase the complexity of the visit. Curettage can also be used for foreign body removal. It can be submitted under CPT code 69200 for potential reimbursement.
