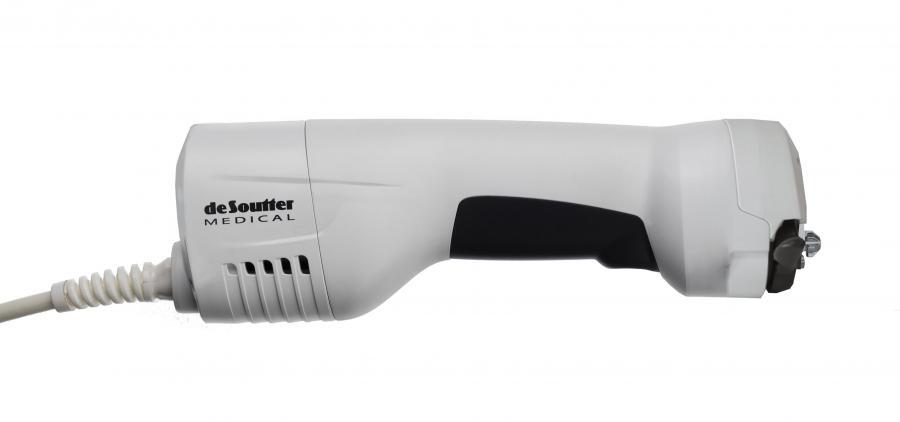

De Soutter CC8 CleanCast Cast Saw

De Soutter CC8 CleanCast™ Cast Saw without extraction

ADVANCED CAST SAW

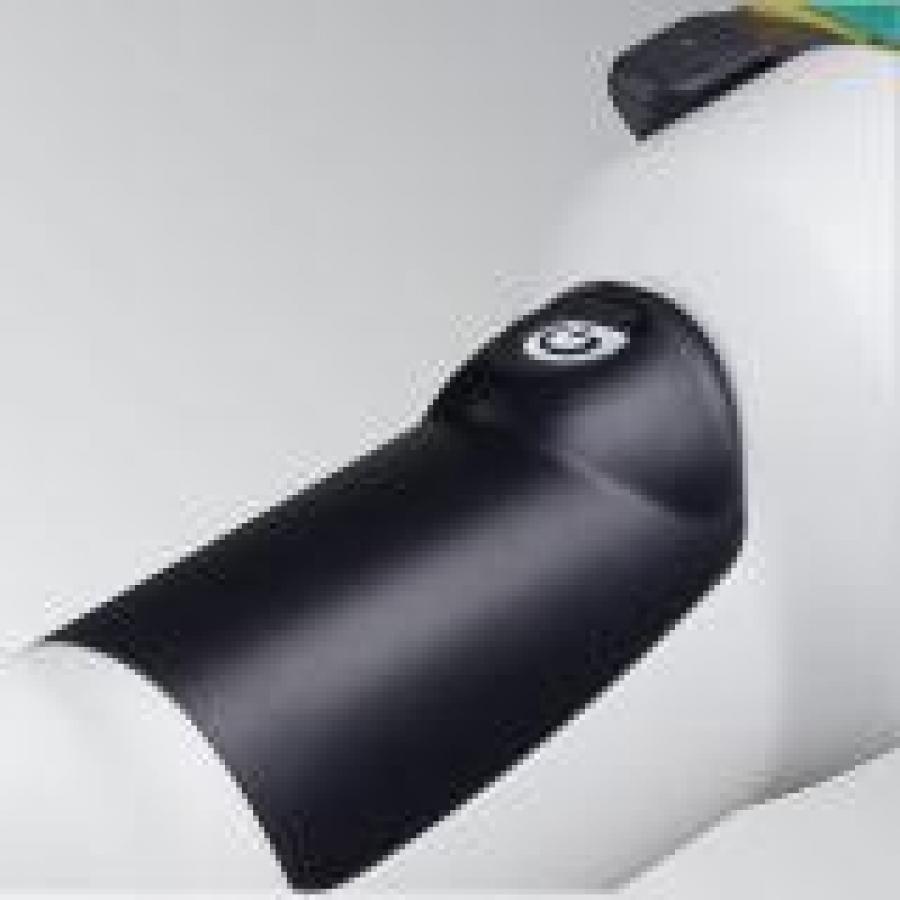

Over many years De Soutter have listened to their customers and spent significant time improving the most important aspects of the new CleanCast system. They've added a finger switch located on the handpiece for easy operationand improved ergonomics.

De Soutter's engineers have used state of the art brushless motor technology to reduce weight, whilst delivering class leading power of 138 Watts, an increase of 38%. They've improved the motor housing, adding vibration absorbing material and acoustic baffles to reduce noise.

Producing an efficient cut starts with the design of the blade, De Soutter Medical have developed a new premium Zirconium nitride blade coating, ensuring each blade lasts longer and will cut faster. A full round PTFE Blade (GMDM19610) and a segment Ion Nitride Blade (GMDM20280) are included.  The popular full round Ion Nitride Blade (GMDM20240) is also recommended and may be purchased separately.

To reduce noise and vibration in the CleanCast, the engineers used the De Soutter Medical ‘tapered lock’ design. The ‘tapered lock’ is a simple principle of applying a wedge to components that need to move in unison, ensuring all lost motion is eliminated. This, in turn, reduces noise and vibration significantly, and allows toolless loading.

Handpiece Specification
Max speed cpm; 17000
Power W; 138
Output voltage V; 12
Weight gms; 670
Dims. (mm); 257 x 79 x 69

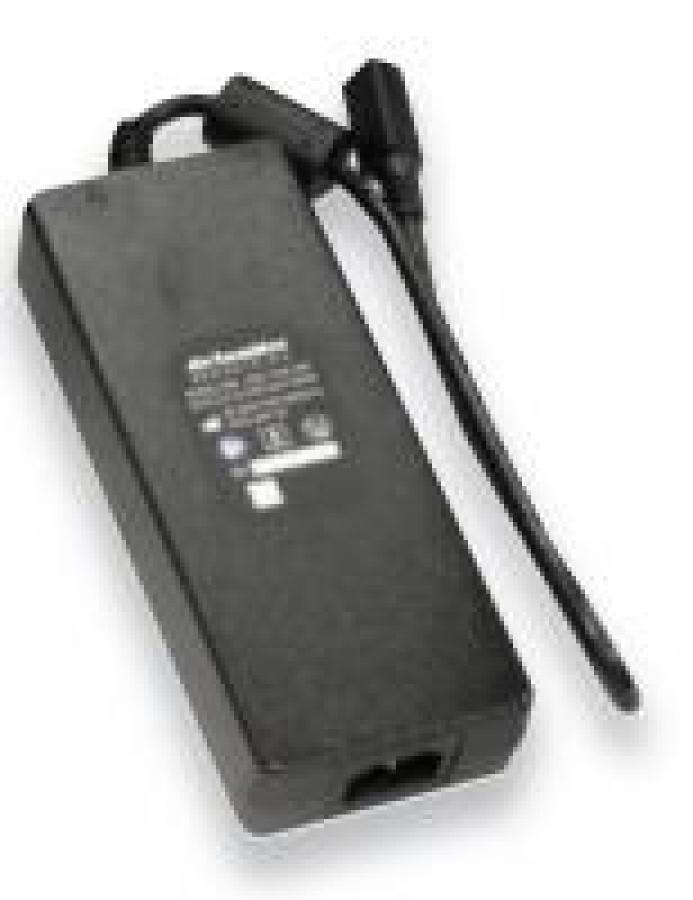

PS8 Power Supply
Output voltage; 12 Vdc
Supply frequency; 50 - 60 Hz
